Air shafts and chucks

Ex. shaft ø74 / TL=567

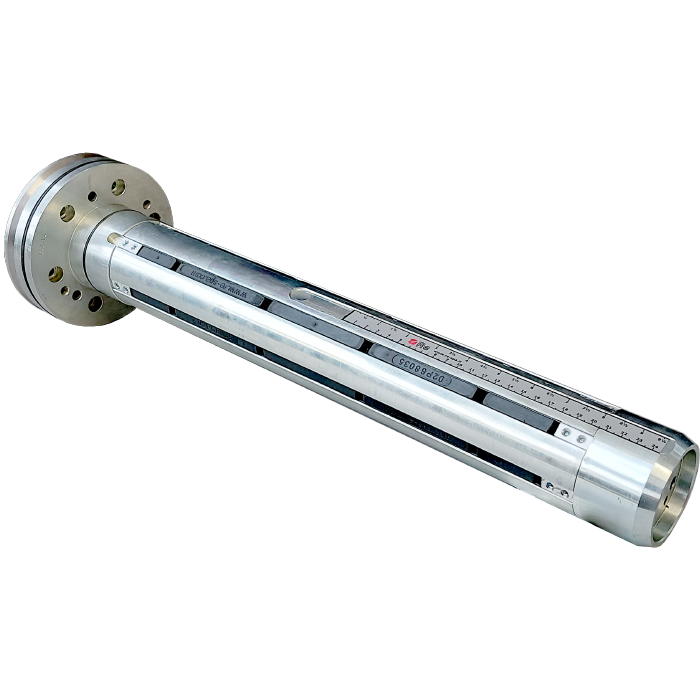

Cantilever air expanding shaft.

Cantilever air expanding shaft made of galvanized steel, ø74 mm, table length 532 mm and total length 567 mm.
6 vulcanized rubber listels for a perfect grip of the reel core and a metric scale for a precise positioning of the rolls.

Air supply from the back.

Cod. 2P03408

Authentication required

For the price and place order, please Sign-in.

Shaft diameter           74 mm
Shaft total length 567 mm
Table length 532 mm
Flange diameter 147 mm
N. listels 6 of vulcanized rubber
Shaft material galvanized steel
