Tension controllers


Not available

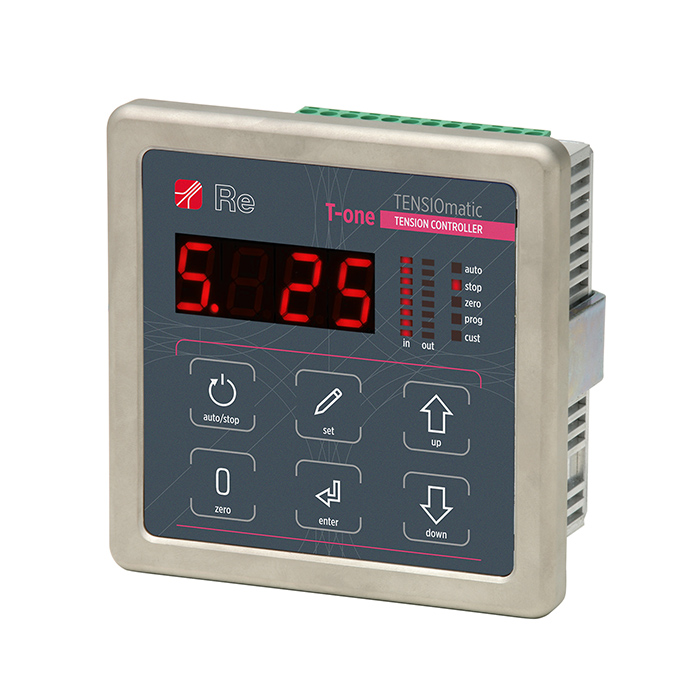

Tension controller for closed loop systems

Tension regulation in torque with load cells or dancing roller; tension regulation in speed with load cells (used with nip roller drive)
Extreme ease of use and compactness are the main features of the tension controller. The interface with 6 buttons and 4 digit is easy to use and allows to smoothly control and set up the desired parameters to obtain the best results.

Cod. 5C01049

Authentication required

For the price and place order, please Sign-in.

Power supply          24 Vdc (+- 10%)
Power 8 W max
Analog input 1 a 0÷20 mV
4÷20 mA
Analog inputs
1 a 0÷10 V
Digital inputs
2 a 24 V
Analog output

0÷10 V
4÷20 mA
Analog output

0÷10 V
PWM output
Digital relay outputs

2 a 24 Vdc
24 Vac
Weight 400 g
Working temperature 0÷50°C
IP protection class IP20
