Tension controllers

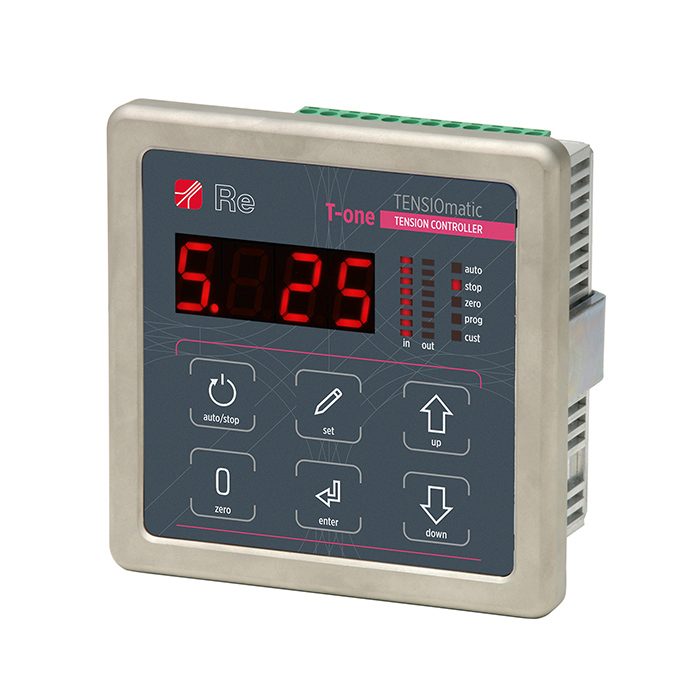

T-ONE 28

Available

Tension controller for closed loop systems

Tension regulation in torque/speed with load cells or dancing roller for motorized unwinding/rewinding stations.
Extreme ease of use and compactness are the main features of the tension controller. The interface with 6 buttons and 4 digit is easy to use and allows to smoothly control and set up the desired parameters to obtain the best results.

Cod. 5C01069

Authentication required

For the price and place order, please Sign-in.

Back
Power supply          24 Vdc (+- 10%)
Power 8 W max
Analog inputs
 3 a 0÷10 V
Digital inputs
 6 a 24 V
Analog ouput

 0÷10 V
4÷20 mA
Analog output

 0÷10 V
Digital relay output


 2 a 24 Vdc
24 Vac
Weight
 400 g
Working temperature 0÷50°C
IP protection class IP20
