T-two

Available

Web tension controller for closed loop systems.

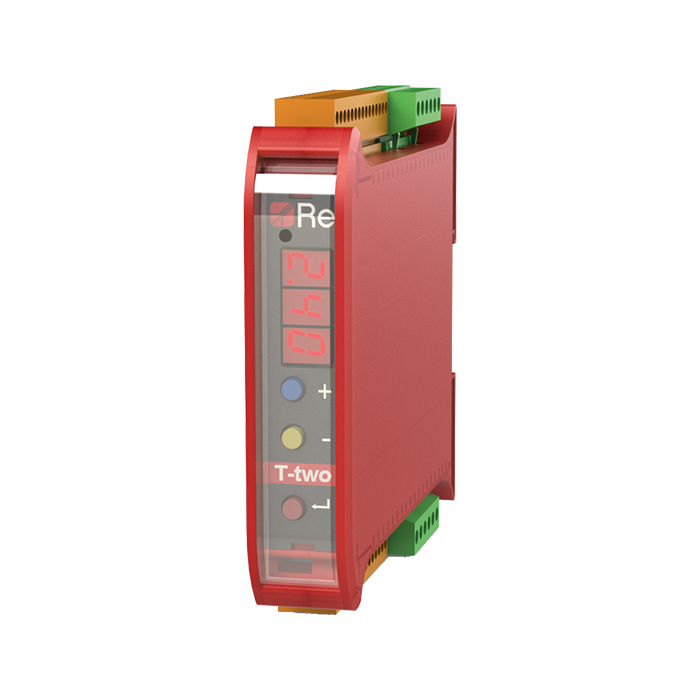

T-two is a digital tension controller for the automatic regulation of the web tension; provided with a compact and sturdy case, it has been designed to be mounted on a DIN bar inside the electrical panel of the machine and for those customers who take care the costs, but without give up the quality and the precision of our tension controllers.
T-two is equipped with 3 buttons for the regulation and the management of the parameters and a 3 digit display with 7 red segments each to show the value of the web tension and the dancing roller position, as well as many other.

Cod. 5C01070

Authentication required

For the price and place order, please Sign-in.

Back


Power supply          24 Vdc
Power 6 W max (logic section) + 58 W max (power section)
Analog input 0÷13 mV
 1 max n.2 load cells
Analog input 0÷10 V / 4÷20 mA
 1 max n. 1 amplified load cell or dancing roller
Analog input 0÷10 V
 1 remote setpoint
1 dancing roller piston control
Digital input 24 V
 4 remote controls from PLC
Output 10 Vdc
 1 potentiometer supply
Output 24 Vdc
1 amplified load cell supply or remote display
Analog output (0÷10Vdc; 4÷20mA; ecc)
 1 tension proportional or dancing roller piston control
1 PID torque control
Output PWM 0÷1 A 1 electromagnetic powder brake
Digital relay outputs 30 Vdc/Vac 2 for alarms
Weight170 g
Working temperature 0÷50° C
IP protection class IP20
