Tension controllers

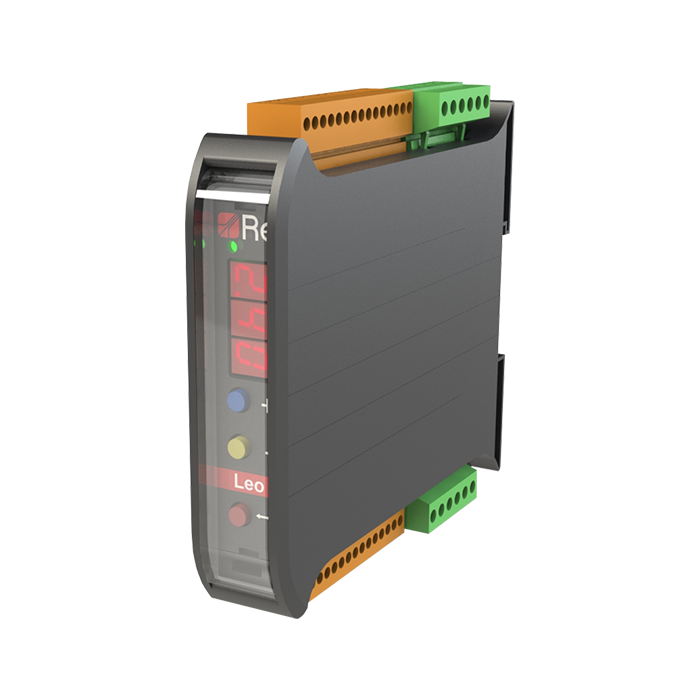

LEO

Available

Current regulator.

Leo is a microprocessor controlled digital current regulator which guarantees versatility, reliability and ease of use.
Leo can be used in closed-loop as current regulator combined with a tension controller (t-one, T-two, PLC); as tension controller in open-loop systems combined with a diametral sensor or potentiometer or as tension controller in closed-loop systems proportional-derivative, with dancing roller and potentiometer.

Leo guarantees brake/clutch torque stability irrespective of variations in the condition of the brake thanks to its internal current loop.
The device can also cancel any residual magnetism (Antiresidual function) making it suitable for use in low torque applications without limitations.

Cod. 5E01014

Authentication required

For the price and place order, please Sign-in.

Power supply          24 Vdc
Power 35 W max
Analog input 0÷10 mV
1 brake control or dancing roller potentiometer
Digital input 24 Vdc

1 brake unlock (zero)
1 priority stop
Outout 10 Vdc
1 potentiometer supply
Output PWM -1÷1 A 1 electromagnetic powder brake
Weight170 g
Working temperature 0÷50° C
IP protection class IP20
