Load cells

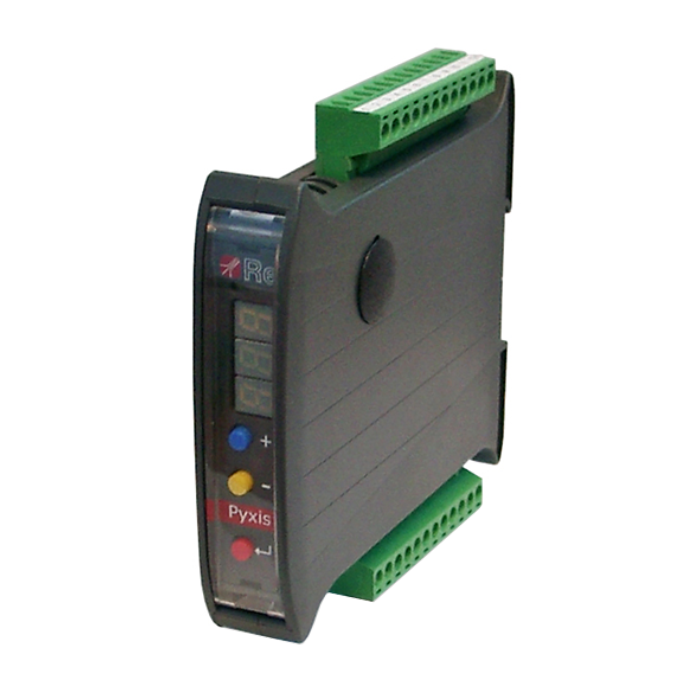

Pyxis

Available

Analogue amplifer for load cells, microprocessor controlled, compact and easy to use.

It is installed on flexographic, rotogravure, cutting, etc. machines to detect the tension of the laminates.
Its HW/SW configuration cuts signal processing times and allows up to four load cells to be connected.
Pyxis has just 3 push-buttons for calibration and programming, and a 3-digit display which at all times shows the function selected or the tensioning value.

Both load cell inputs and outputs for connection to your PLC or actuator system can be selected in voltage (mV) or current (mA).

Cod. 5H01010

Authentication required

For the price and place order, please Sign-in.

Back
Power supply                24 Vdc (18÷30 Vdc max)
Consumption 250 mA max
Working temperature 0÷50° C
Inputs 0÷60 mV / 4÷40 mA
for load cells
Analog output 0÷10 V or 4÷20 mA
selectable
Analog outputs 2 for 0÷10 V
with adjustable digital filter for remote display or amplified input
Relay digital outputs 2 for 24 Vdc/Vac
for alarms
Outputs 24 Vdc
for remote display supply
