SIR.1/B.50
Available

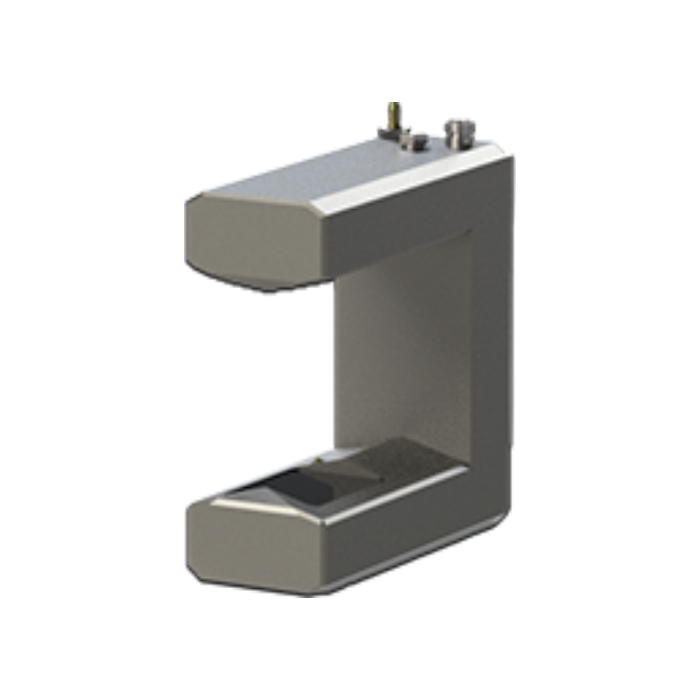

Infrared sensor.
The infrared SIR sensors are specifically designed for detecting of the edges of soundtransparent materials or with very thick weaves.
The compact design guarantees an easy installation in all kind of applications.
SIR.1 is equipped with a LED transmitter and a PSD receiver that guarantees a measuring range of 16 mm with a resolution of 0,015 mm.
The sensor can be used in conjunction with Re webguiding system or with a normal PLC, using the 0÷5 Vdc voltage output and the broad 12 Vdc power range.
Using two sensors at the same time is it possible to realize the ''centre guide'': by considering the reading of both edges, the sensors guide the web by keeping the centre as the reference point.
Cod. 5R01007
