CX-nano caliper

Available

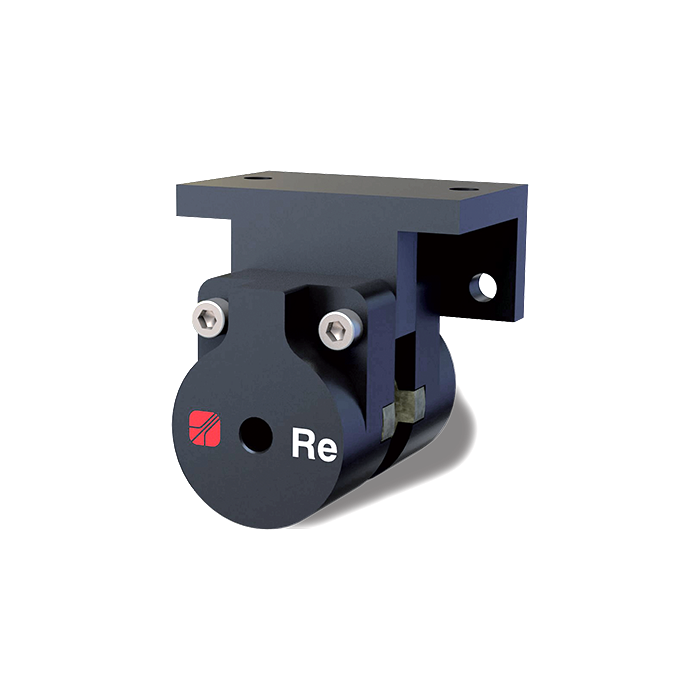

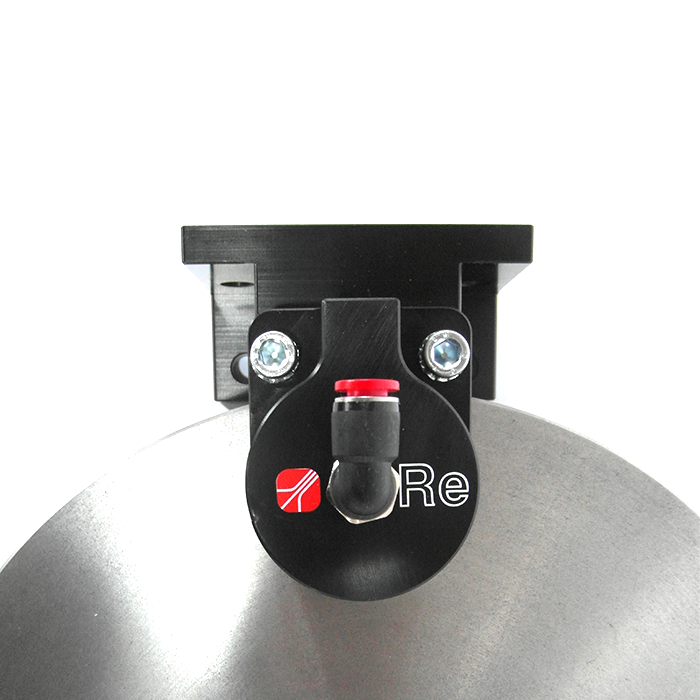

CX-nano pneumatic caliper.

CX-NANO pneumatic caliper, which is the miniature of the CX caliper, is the new solution for applications where considerable braking torques in reduced spaces are needed.
It is available for different thickness discs: 6, 8 or 12,5 mm.

Select the right model:

  • Cod. 01D38018 - CX-nano caliper no flange
  • Cod. 01D38014 - CX-nano caliper with flange 8mm
  • Cod. 01D38011 - CX-nano caliper with flange 12,7mm

Authentication required

For the price and place order, please Sign-in.

Back
Tangential force at 6 bar               510 N max
Max air pressure6 bar
Pad center40 mm
