Tension controllers

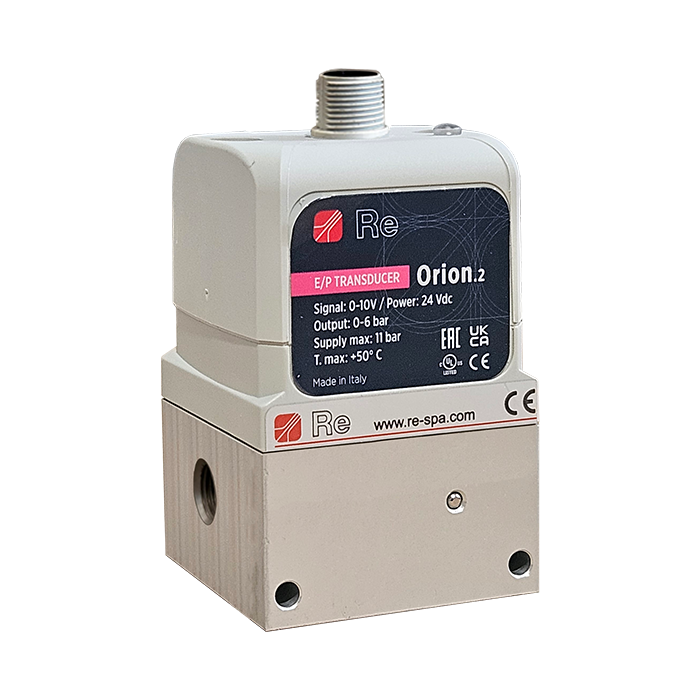

Orion.2

Available

Electropneumatic converter for a precise web tension.

Orion.2 proportionally transforms an input electric signal into a pneumatic signal.
It is recommented for the excellent price/performance ratio and can be used both on open-loop and closed-loop systems.
Thanks to its compact dimension Antlia can be easily installed near the brake or the clutch it is connected to, in order to obtain the maximum performance.

Select the correct model:

  • Cod. 5L01005 - Orion.2 0-10V + bracket + filter (G 1/4")
  • Cod. 5L01003 - Orion.2 0-10V

Authentication required

For the price and place order, please Sign-in.

Back
Power supply                24 Vdc
Input signal 0÷10 V
Working temperature 0÷50 °C
IP protection class IP65
Electrical connection
 M12 - 5 poles

Pneumatic connections
Supply over max output pressure
 1 bar (22 psi) min
Output pressure 0÷6 bar (0÷90 psi) max - different outputs on request
Fluid
 filtered to 5 microns, dried and dehumidified
Connections G 1/4"
