Load cells

CF.70

Available

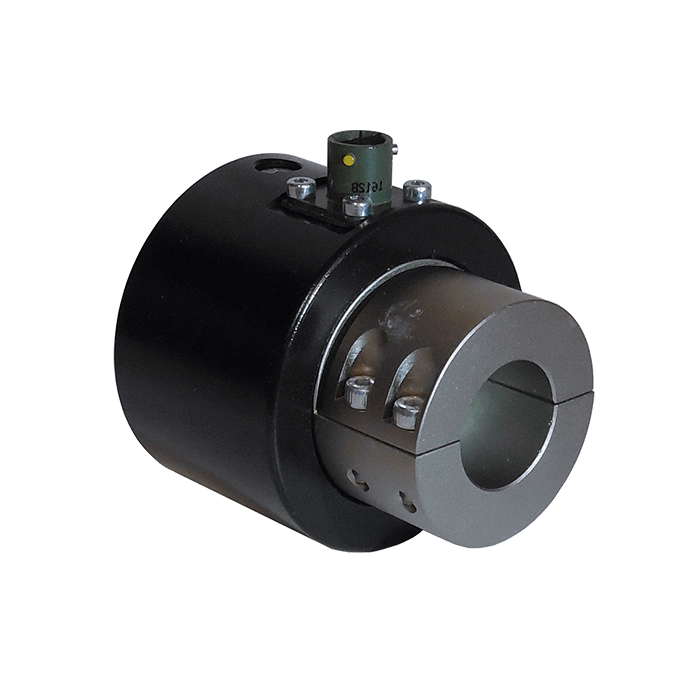

Flange load cell to detect the web tension of a running web to process.

They are installed at the end of a measuring roller to precisely detect the resultant of the forces generated by pulling of the material depending on the wrapping angle.
CF load cells have been designed with a compact design, to easily fit them in narrow spaces, to be installed very easily and to reach a very high reliability.

Select the right version:

  • Cod. 6A05001 - CF.70.25.25 mV (load 250N)
  • Cod. 6A05002 - CF.70.50.25 mV (load 500N)

Authentication required

For the price and place order, please Sign-in.

Back
Precision class         0,5%
Resistenza ponte strain gauge 350O Ohm
Total error-repeatability-histeresy-linearity <0,05% of full scale value
Max overload in measuring direction 300% of full scale value
Temperature compensation +10°C / +50°C
Working temperature +10°C / +50°C
Sensitivity from 1,5 mV/V to 2,0 mV/V
Supply: max 15V
Max at full scale value: 20 mV
Optional
 output 4-20 mA (with embedded preamplifier)
