Load cells

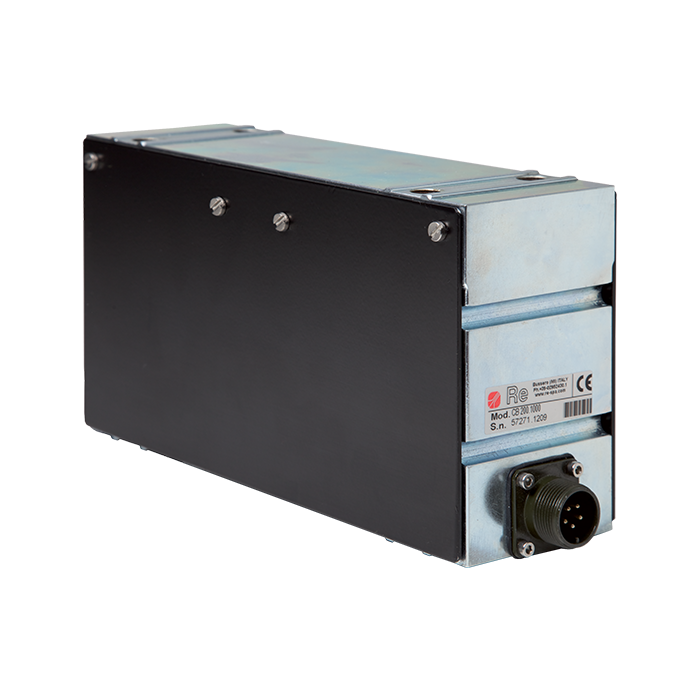

CB.200

Available

Base style load cell to detect the web tension of a running web to process.

CB series load cells guarantees high resistance to vibrations and overloads, and also reliability, precision and long life span. Installation requires foot bearing support and, related with the load to bear, CB load cells are supplied in aluminium or steel.

CB cells are applied in particular on paper mill, calendering and rolling machines, but also on plants in which laminate must be treated with extreme care and attention.

Select the right version:

  • Cod. 1092500 - CB.200.250 (load 2500N)
  • Cod. 1095000 - CB.200.500 (load 5000N)

Authentication required

For the price and place order, please Sign-in.

Back

Related products

Code First name
5C01049T-ONE
Precision class         0,5%
Resistenza ponte strain gauge 350O Ohm
Total error-repeatability-histeresy-linearity <0,05% of full scale value
Max overload in measuring direction 300% of full scale value
Temperature compensation +10°C / +50°C
Working temperature +10°C / +50°C
Sensitivity from 1,5 mV/V to 2,0 mV/V
Supply: max 15V
Max at full scale value: 20 mV
Optional
 output 4-20 mA (with embedded preamplifier)
