Brakes

B.351

Available

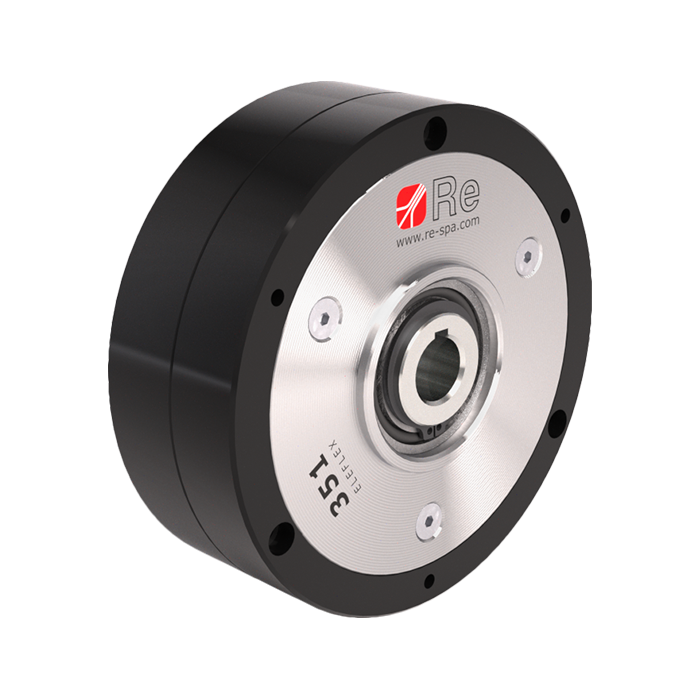

Electromagnetic powder brake

Eleflex brakes guarantee small size, high precision of the torque control, no dust emissions and reduced residual torque.
B.351 model guarantees 0,2 Nm of residual torque and 35 Nm of torque.

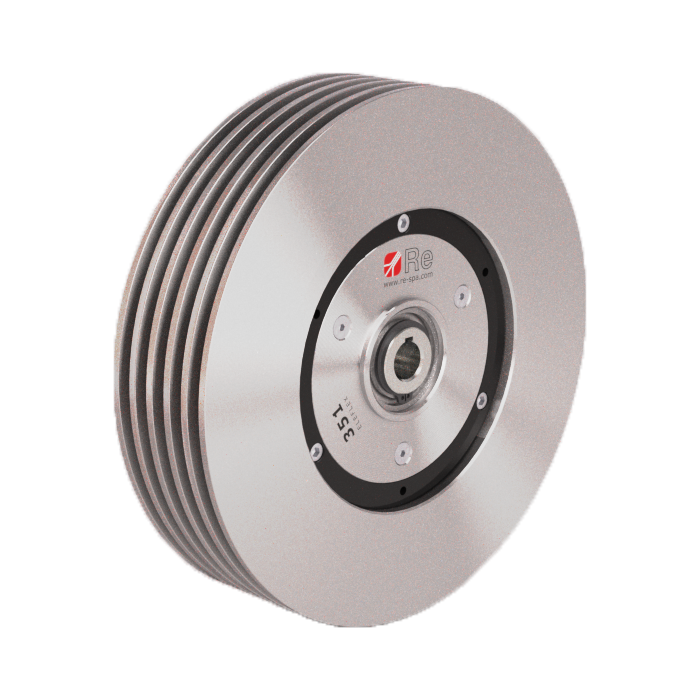

B.351 can be provided with radiator (B.351-R) to increase the heat dissipation and, consequently, the life span of the brake.

Select the right version:

  • Cod. 1Z03002 - B.351
  • Cod. 1Z03003 - B.351-R

Authentication required

For the price and place order, please Sign-in.

Back
Nominal torque           35 Nm
Residual torque 0,2 Nm
Current 1 A
Resistance 24 Ohm
Tension 24 V
Power dissipation B.351
B.351-R          		130 W
230 W
Rpm min/max 40/2000 rpm
Max working temperature 70°C
