Brakes

B.1201

Available

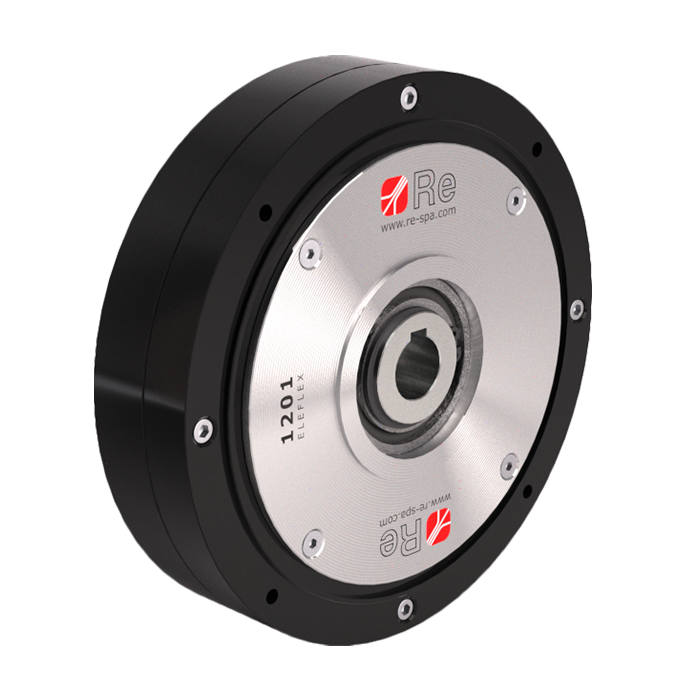

Electromagnetic powder brake

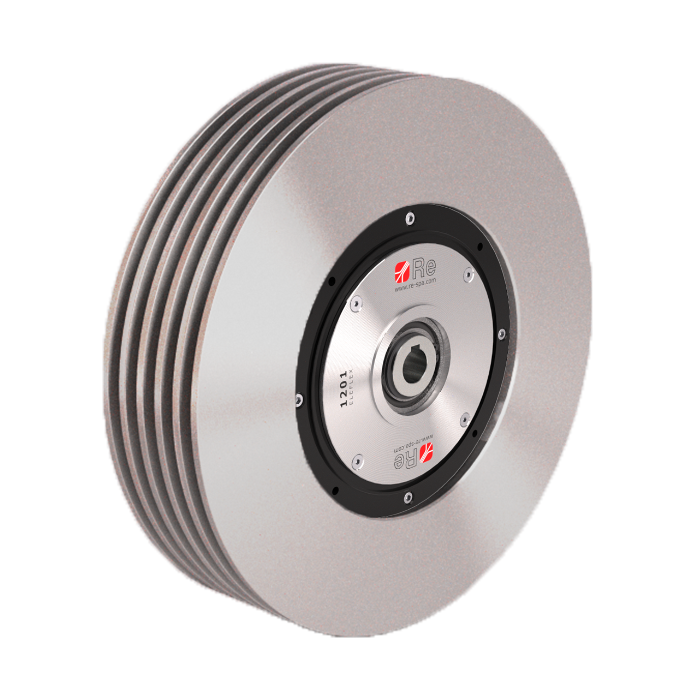

Eleflex brakes guarantee small size, high precision of the torque control, no dust emissions and reduced residual torque. B.1201 model guarantees 0,5 Nm of residual torque and 120 Nm of torque. B.1201 can be provided with radiator (B.1201-R) to increase the heat dissipation and, consequently, the life span of the brake.

Select the right model:

  • Cod. 1Z12001 - B.1201
  • Cod. 1Z12002 - B.1201-R

Authentication required

For the price and place order, please Sign-in.

Back
Nominal torque           120 Nm
Residual torque 0,5 Nm
Current 1 A
Resistance 24 Ohm
Tension 24 V
Power dissipation B.1201
B.1201-R          		330 W
650 W
Rpm min/max 40/2000 rpm
Max working temperature 70°C
