Load cells

Lynx amplifier

Available

Digital amplifer for load cells, microprocessor controlled, compact and easy to use.

It is installed on flexographic, rotogravure, cutting, etc. machines to detect the tension of the laminates.

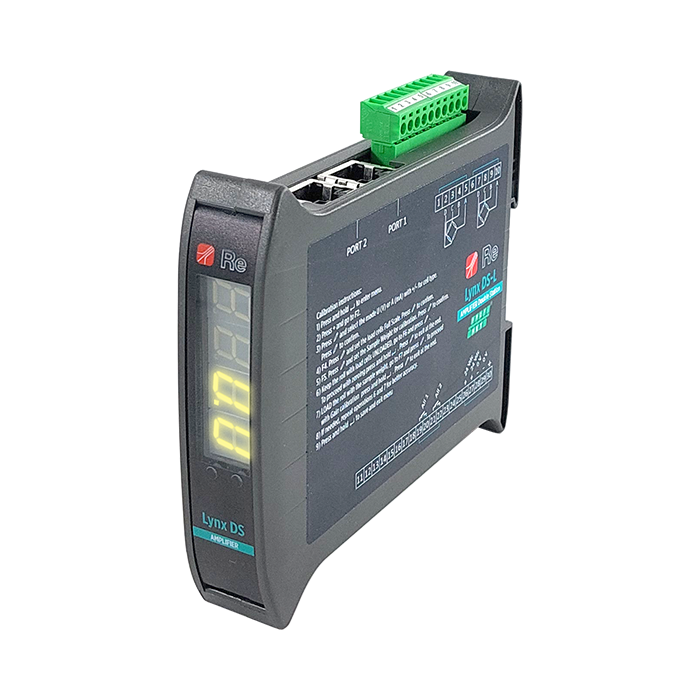

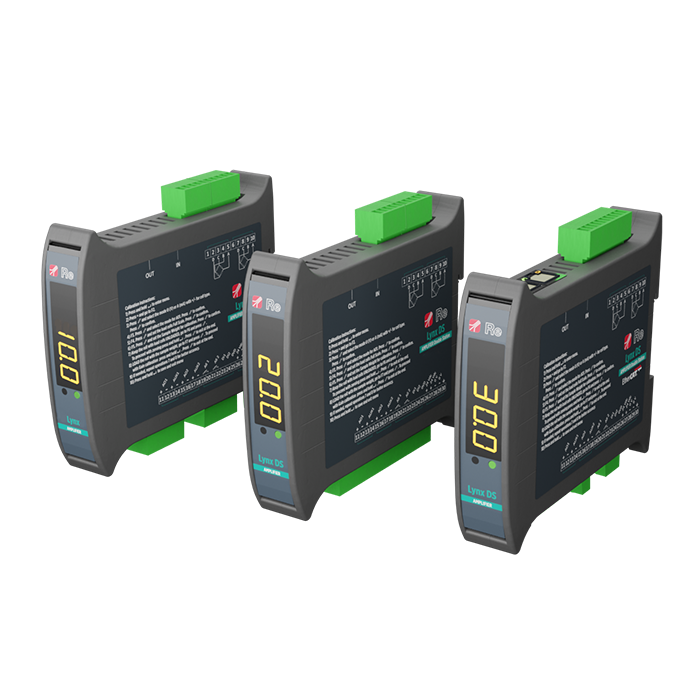

Lynx amplifier is available in three versions: for single channel (Lynx), for dual channel (Lynx DS) and for dual channel with ProfiNET or EtherCAT fieldbus (Lynx DS-L)
Lynx is equipped with 4 push-buttons for calibration and programming, and a 4-digit display which at all times shows the function selected or the tensioning value.

Both load cell inputs and outputs for connection to your PLC or actuator system can be selected in voltage (mV) or current (mA).

Seleziona il modello corretto:

  • Cod. 5H01089 - Lynx amplifier for single channel
  • Cod. 5H01019 - Lynx DS amplifier for dual channel
  • Cod. 5H01027 - Lynx DS-L amplifier for dual channel with ProfiNET
  • Cod. 5H01028 - Lynx DS-L amplifier for dual channel with EtherCAT

Authentication required

For the price and place order, please Sign-in.

Back


Lynx

Lynx DS

Lynx DS-L
Power supply

                 24 Vdc
(20÷28 Vdc max)

               24 Vdc
(20÷28 Vdc max)

          24 Vdc
(20÷28 Vdc max)
Consumption

 < 300 mA

< 300 mA

< 300 mA
Working temperature

 0÷50° C


0÷50° C


0÷50° C
Analog inputs


 0÷80 mV / 0÷50 mA


0÷80 mV / 0÷50 mA


0÷80 mV / 0÷50 mA
Configurable analogue outputs

 0÷5V; 0÷10V; 4÷20mA;
0÷20mA; 0÷24mA

0÷5V; 0÷10V; 4÷20mA;
0÷20mA; 0÷24mA

no
Digital outputs

 2 da 60 V / 500 mA max
for alarms

2 da 60 V / 500 mA max
for alarms

2 da 60 V / 500 mA max
for alarms
Max connected load cells

 2


4, 2 on each channel


4, 2 on each channel
Fieldbus connection no

ProfiNET o EtherCAT (optional)

ProfiNET o EtherCAT
